Overhead Gantry Cranes
ERGONOMIC OVERHEAD CRANE SYSTEMS BUILT TO LAST
At Spanco, we have hundreds of pre-engineered overhead gantry lift cranes that we can completely customize to meet the requirements of your specific material handling application. Our certified engineers take pride in creating custom gantry systems for a broad variety of industries and applications. For your peace of mind, all Spanco cranes come with industry-best warranties.
Spanco Gantry Cranes come in hundreds of versatile models:
Portable Gantries: Reach all corners of your plant. Lift and move materials, or use for pulling motors, equipment, and other heavy machinery. Quick disassembly for transport by service truck. Series T, A, E, and Aluminum are our portable gantry series.
Adjustable Gantries: Adjust height, span, and tread (T-Series) for use on uneven floors, through doorways, aisles, and under mezzanines or other overhead obstacles. Excellent gantries for warehouses and welding shops. Series T, A, E, and Aluminum are our adjustable gantries.
Track-Mounted Gantries: Manual or motorized travel over a fixed route make our track-mounted gantries a great choice.
Relocatable Gantries: Virtually all Spanco Gantries are relocatable, making them ideal for rented facilities or future workflow changes.
CRANE VERSATILITY & PORTABILITY
Overhead Gantry Lifts for Sale From Spanco
A gantry crane consists of a beam supported by two legs with swivel casters. Gantry cranes lift heavy materials and can be transported while under load by using mechanical or manual power.
Spanco has an extensive inventory of small and large gantry cranes for sale in multiple configurations to help improve your business’s material handling processes and production. These cranes are easy to install, disassemble, and relocate and don’t require permanently modifying your facility, making them suitable for work in multiple areas or operations in a rented facility. V-tracks and guide angles easily lag bolt to the existing floor.
Spanco gantry cranes are unsurpassed in design, durability, strength, and quality construction.
Handle Materials and Production Workstations With Adjustable Gantry Lift Cranes
Custom gantry cranes can be used below existing overhead bridge crane systems and for outdoor applications, such as:
- Construction sites
- Steel mills
- Railyards
- Scrap yards
- Manufacturing facilities
- HVAC businesses
- Shipyards
Motorized Gantry Crane Options
Motorized trolleys are compatible with Spanco gantry cranes. If using a motorized trolley, Spanco recommends using our PF or T-Series gantry crane systems.
We also offer three types of push-button pendant control motorized travel for our Single Leg, Wide Flange, and PF-Series gantry crane models:
- V-groove track travel: Using a v-groove track on both sides of the system and v-groove casters, the gantry can be motorized to travel a straight, fixed path.
- Guide angle travel: Depending on the application requirements, a guide angle can be mounted on one side of the system while the other side uses casters only. Larger capacities use a guide channel instead of a guide angle. This motorization option also supplies forward and backward motions only for fixed, straight travel.
- Trackless travel: Trackless travel can be aligning or steerable. Aligning trackless travel provides forward and backward motions only along a fixed, straight path. Steerable trackless travel allows the gantry system to turn but has a large turning radius and requires ample room in your facility.
Portable Custom Gantry Cranes for Sale
A portable gantry crane lets you work anywhere — easily relocate it to move and lift heavy materials outdoors or inside. Portable cranes can be used for plant maintenance and service vehicle applications requiring equipment to be relocated.
Our portable gantry crane systems include:

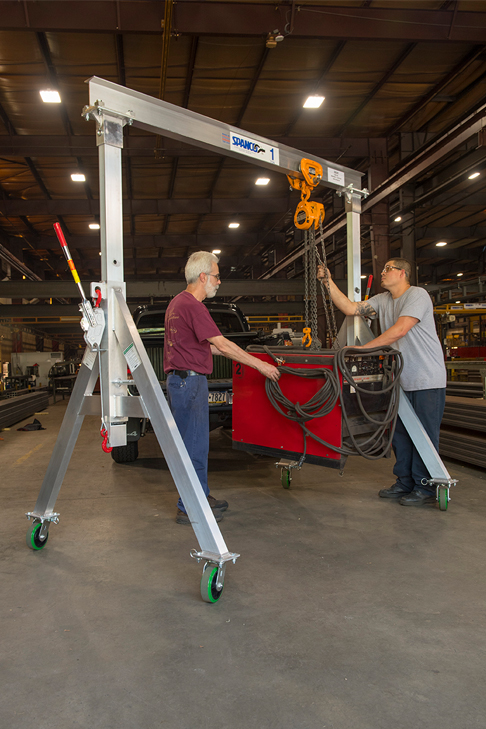

- A-Series: The A-Series has fixed- and adjustable-height models that come in steel or all aluminum. All-aluminum models have adjustable span kits for DIY modifications and alternative caster styles and wheel brakes, including pneumatic tires. Optional height adjustment winch hoist kits let teams change the beam height.
- E-Series: The E-Series offers two options — a fixed-height crane with a 5-ton max capacity and a 3-ton adjustable-height model. The 3-ton model can be moved in 6-inch increments.
- T-Series: Available in all steel or aluminum I-beam options, the T-Series is adjustable in span, height, and tread for fitting under overhead obstacles and through doorways and aisles. It can also navigate to other facility floors, with an optional cart kit that attaches to the caster frames to make it even more transportable.
- PF-Series: The PF-Series has higher capacity, higher heights, and longer spans compared to our other gantry cranes. Available in single-leg and traditional two-leg designs, our PF-Series systems can provide motorized travel.
Versatile Options That Meet Any Need
Our manual systems and equipment have a 10-year warranty, while our motorized systems, equipment, paint, and finishes for non-aluminum components have a two-year warranty.
We want our overhead gantry crane systems to be reliable with no defects in the material and craftsmanship. This dedication is why we use:
- Nuts, bolts, and pins plated for corrosion resistance
- High-quality, long-lasting casters
- Standardized, high-quality beams
- Weather-resistant exterior coatings and stainless steel motors
- Spanco Yellow Industrial Enamel paint
- Precision tolerances and welding to ensure component alignment and operational stability during operation
View Our Products and Contact Us Today!
If you need an overhead gantry crane system, come to Spanco. We have more than four decades of experience in providing high-quality, cost-effective material handling equipment. Our overhead systems move and secure materials and machines for various industries from coast to coast and in Mexico and Canada. We will work with you to customize a factory gantry that meets your needs.
View the products for each category to see our offerings, and use our system selector tool to pick a gantry crane by system type, travel method, height, and capacity. Find a rep or contact us online to learn more about what we can do for you.
